WiGauge™



WiGauge™ - No Cabled Restrictions

Solartron’s range of wireless metrology hand tools use the latest Bluetooth™ technology to transmit measurements to a receiver like a PC or Bluetooth™ enabled readout.

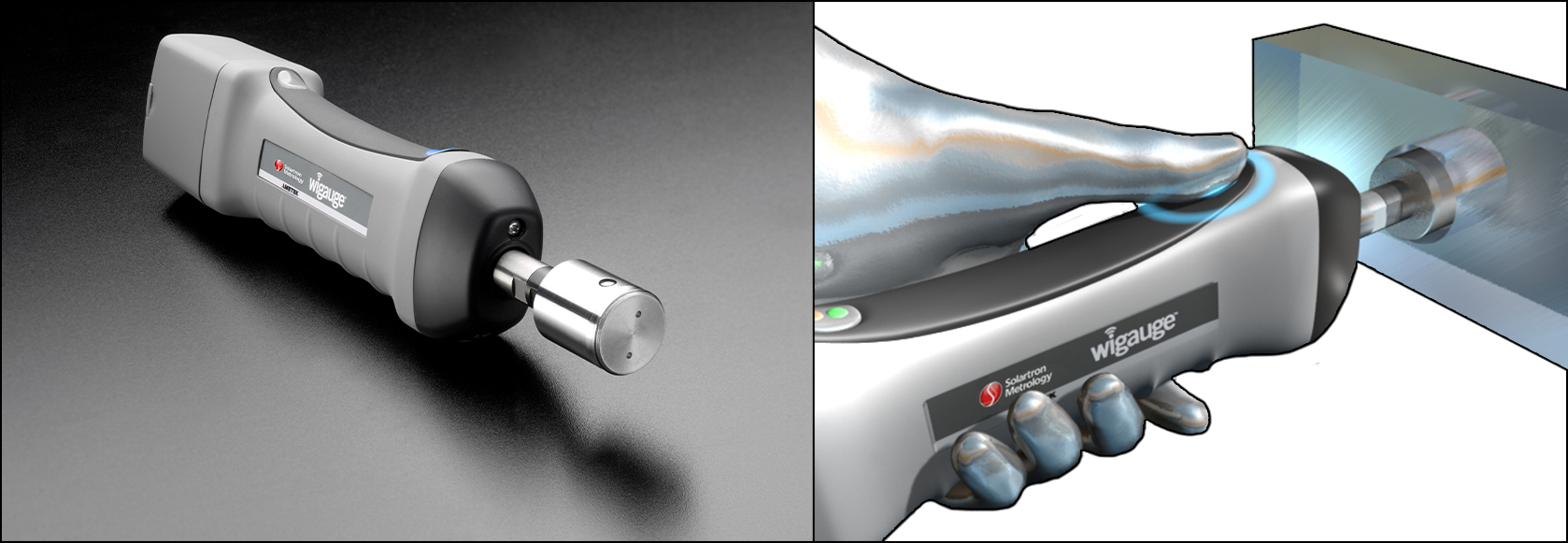

WiGauge™ Single Channel Hand Tool - A Cable-Free Bore Gauging Solution

For applications where cables are cumbersome, Solartron offers Single Channel and Multi Channel Wireless gauging solutions. Both employ Class 1 Bluetooth capability, with up to 15 meter data transmission. Connect through Orbit or directly to a PC.


Key Features

  • Fit Wi Gauge with bore heads to check inner diameters
  • M10 & M6 mm fixing threads, which fit most common bore heads
  • LCD Screen option
  • 0.1 µm resolution (user selectable)
  • Multiple WiGauges™ can connect to a single system
  • 10 hours battery life (based on continuous data transmission)
  • Inductive and Plug-In Charging options
  • IP65 protection
  • Pass/fail range lamps
  • Audio indication of data transmission


View Brochures and Drawings

Please click the links to view and download the following information:

YouTube Video

Orbit Digital Gauge Catalogue.

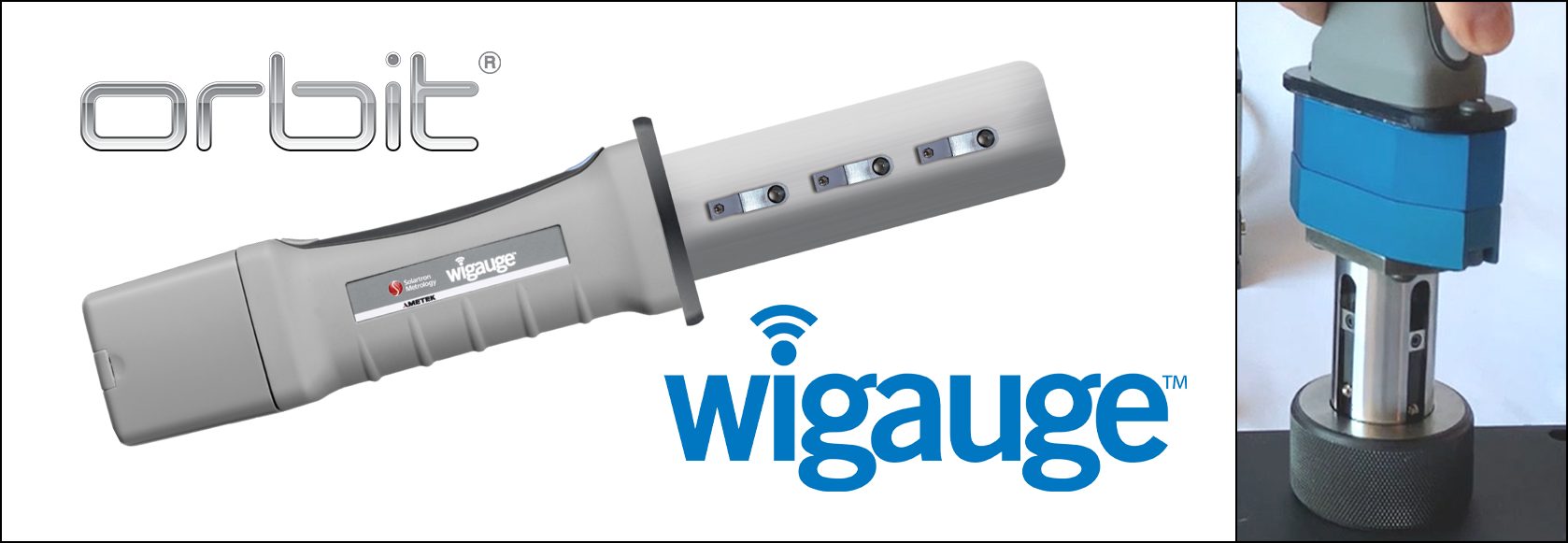

WiGauge™ Multi Channel Hand Tool - For Multiple Gauging Applications

For applications where cables are cumbersome, Solartron offers Single Channel and Multi Channel Wireless gauging solutions. Both employ Class 1 Bluetooth capability, with up to 15 metre data transmission. Connect through Orbit or directly to a PC.


Key Features

  • Handle can be integrated with up to 8 Solartron transducers to form multifunctional wireless gauges, such as snap gauges or multi-sensor bore gauges
  • Mounting plate on end of handle to attach custom tooling
  • < 0.1 µm resolution
  • 5 hours battery life (based on continuous data transmission) off charger.
  • Inductive battery charging system
  • IP65 protection (Handle)
  • Audio indication of data transmission


View Brochures and Drawings

Please click the links to view and download the following information:

Orbit Digital Gauge Catalogue.

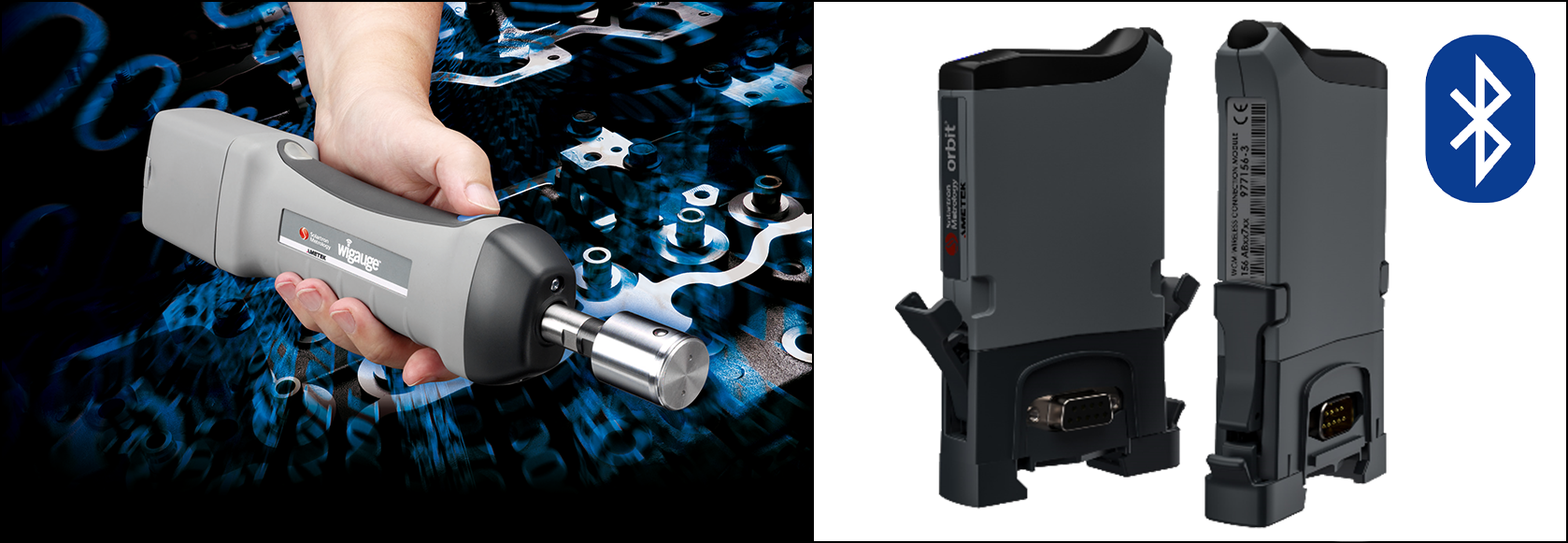

WiGauge™ Wireless Connection Module - Output Directly into a Reliable Network

Use the Wireless Connection Module to output WiGauges™ directly into the Orbit Network.  The Wi Gauges can then be run with Orbit GCS and others. Up to 6 WiGauge™ units can be connected to a WCM at once, and all data be saved and synchronized with other Solartron Sensors.




View Brochures and Drawings

Please click the links to view and download the following information:

Orbit Digital Gauge Catalogue.
