Air Gauge & Interface Modules



Solartron offer a number of Interface modules to connect a PC to the Orbit network. Using a PC to control the network is a flexible solution with simple readings from sensors  to measure basic dimensions through complex high speed acquisition to perform processes like shaft profiling.



Interfacing Orbit to PLC which are often the preferred controller for automation is easily done using Solartron’s range of PLC to Orbit Interfaces.

Connecting to 3rd party sensors and switches is addressed with a range of modules such as the Digital I/O module and the analogue input module.

Capturing data from Air Gauging is easy using the AGM module, multiple modules can be simply connected and Air Gauging can be combined with contact gauging and process control



What We Provide

  • Computer to Orbit® Network Interfaces
  • USB, Ethernet, RS232
  • PLC to Orbit Interfaces
  • EtherNet IP, ProfiNet, EtherCat™
  • Special Modules
  • Analogue Input
  • Digimatic Interface
  • Strain Gauge
  • Rotary Encoder Input
  • Air Gauging
    •

    View Brochures and Drawings

    Please click the links to view and download the following information:

    Orbit Digital Gauge Catalogue.



    Air Gauge Modules - Makes Connectivity Easy


    Solartron Metrology’s Orbit Air Gauge Interface Module (AGM) makes connecting air gauge Measurement Probes to Orbit simple, allowing the user to mix air gauges with all of our contact and non contact sensors to fully utilise the full performance of the Orbit Digital Measurement Network



    Key Features

  • Interfaces to most Air Gauge spindles, mandrels or bore heads
  • High stability Air to Orbit Converter
  • Resolution better than 0.1 µm
  • Pressure 30 psi
  • Simple set up and Mastering using Orbit or integral screen





    • View Brochures and Drawings

    Please click the links to view and download the following information:

    YouTube Video

    Application Story

    Orbit Digital Gauge Catalogue.



    Orbit® Interface Modules - Full Functionality, Full Support

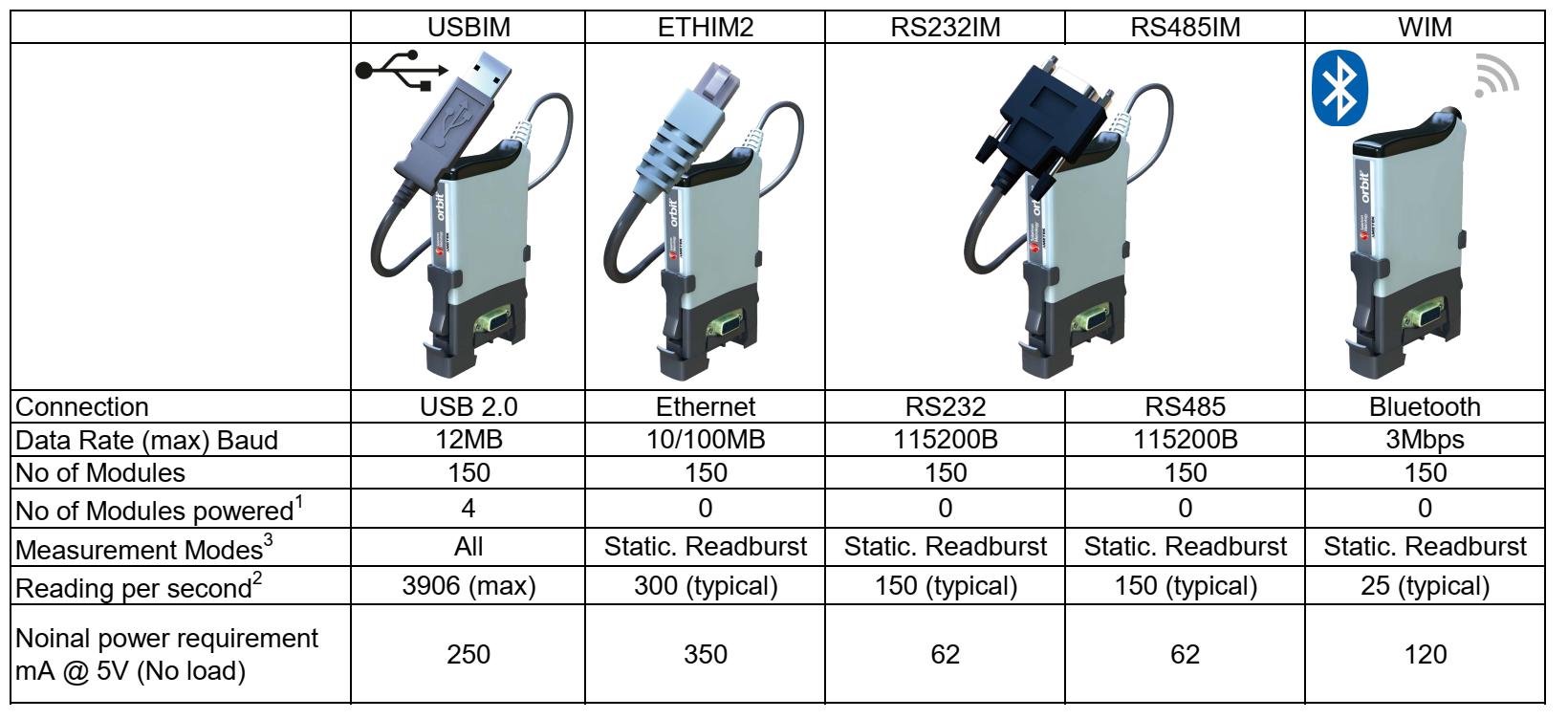

    The Ethernet Interface Modules and USB Interface Modules provide full functional control of the Orbit system and supports all modes of data capture at full speed. These are the recommended Interface Modules for new installations unless wireless is a requirement then consider the Wireless Interface Module however this does not support all modes. RS232 is not recommended for new systems


    What We Provide

  • ETHIM2 Ethernet Orbit® Interface Modules
  • Wireless (Bluetooth) Orbit® Interface Modules
  • RS232 Orbit® Interface Modules


    • View Brochures and Drawings

    Please click the links to view and download the following information:

    Orbit Digital Gauge Catalogue.
