显示表和数字读出器概览

Readouts and Displays
数显表
  • Orbit 接口 显示表
  • 模拟传感器接口显示表
  • 集成传感器的显示表

    • Solartron 为各种类型的传感器提供了多种接口的仪器仪表，以满足您不同的应用需求

    SI 8500 Orbit Readout - Customisable Programming for an Optimised Workflow

    The  SI 8500 provides the opportunity to collect measurement data with the purpose of optimizing manufacturing production analysis and control. User interface has been designed to ensure all users the maximum accessible data for industrial measurement applications.

    Key Features

  • Heavy duty aluminium casing with 10” Touch Screen. Built for an industrial environment.
  • IP64 for front panel with four programmable keys.
  • Connect with up to 64 Orbit Sensors
  • Power up to 10 modules, including contact and non-contact sensors
  • Easy & intuitive setup with touch screen
  • Build your own custom formulas
  • SPC and Mastering functions included
  • I/O Connections for automation
  • USB port for easy data output
  • Footswitch plug
  • Link to 3rd party sensors via Orbit connection modules, including air gauging
  • Benchtop (with stand) or Panel Mount options (VESA Mounting Standard)

    •



    View Brochures and Drawings

    Please click the links to view and download the following information:

    YouTube Video

    Orbit Digital Gauge Catalogue.

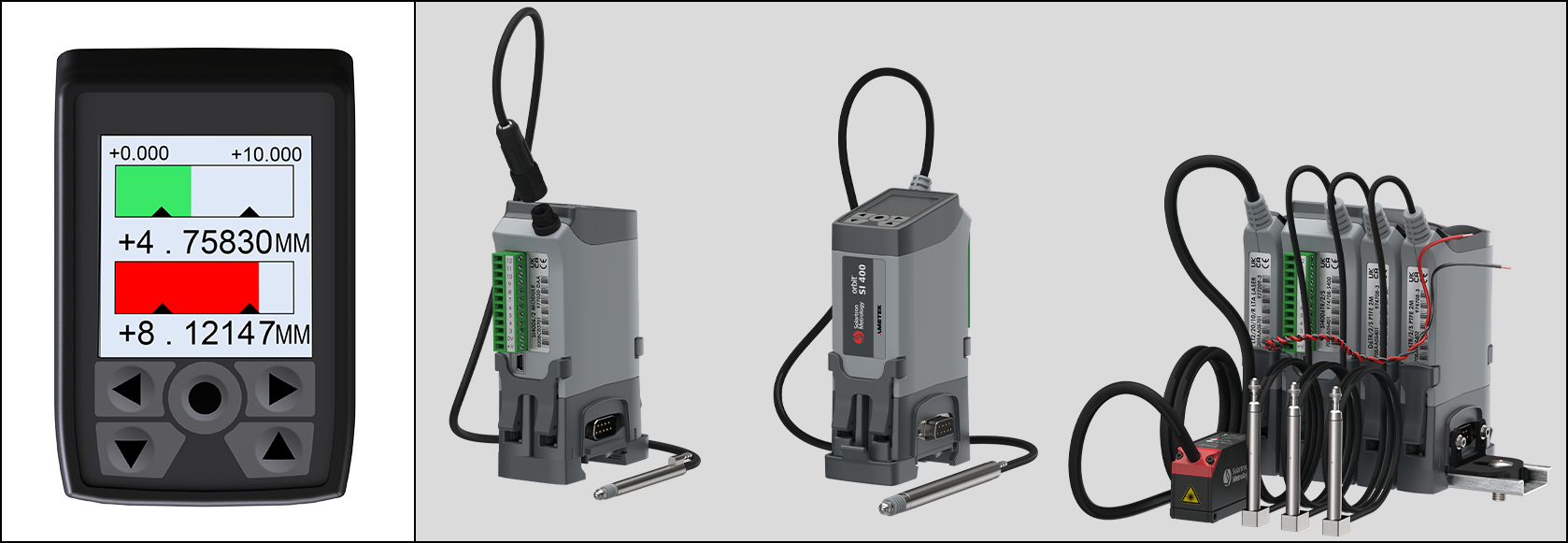

    Orbit ACS Readouts - Quick, Cost-Effective Checks & Easy Gateways into a PLC

    The SI100 is a single channel, stand alone system, while the SI200 also connects to an Orbit® probe for two channel measurements and the SI400 connects to up to 3 probes.

    Key Features

  • Integral Readout with colour LCD Screen and keypad
  • Set tolerance and process limits via keypad
  • Detachable probe plug on housing for easy installation
  • Replace probe with no calibration or reprogramming
  • Modbus output (RTU) over RS485 or RS232
  • Programmable discrete I/O (4 inputs, 3 outputs)
  • Multiple formulas available for SI200 (A+B, A-B, etc)
  • Available with all Solartron transducers and lasers
  • 24 VDC Power Supply

    •



    View Brochures and Drawings

    Please click the links to view and download the following information:

    Orbit Digital Gauge Catalogue.


    Orbit Readouts - Solutions for Small Systems

    Solartron has a range of digital readouts to suit all applications from industrial panel mount to desk top units. Readouts can have from 1 to 31 channels of measurement and can be configured for custom applications.



    Specially designed to work with Solartron Orbit® Digital Transducers, the SI3500 and SI5500 provide the user with solutions for small systems. Both readouts have intuitive menu systems for ease of set up and can be programmed to display readings, alarms, limits and other metrology functions. With discrete I/O and serial interfaces these readouts provide a neat solution to interface to other systems like PLC’s.



    • SI 3500 2 Channel Readout
    • SI 5500 32 Channel Readout



    View Brochures and Drawings

    Please click the links to view and download the following information:

    Orbit Digital Gauge Catalogue.

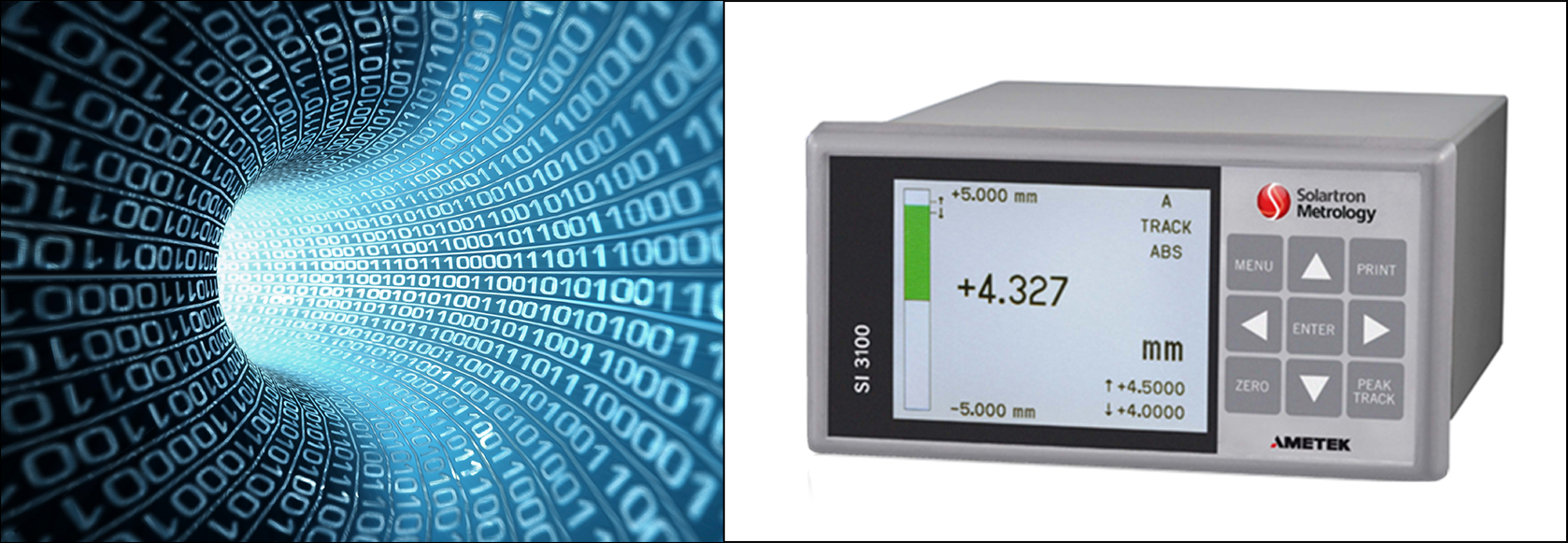

    Inductive Transducer Readouts - Programmable, Intuitive, and Easy to Use

    Specially designed to work with Solartron Transducers, the SI3100 provides the user with 1-2 channel solutions for small systems. The readout has an intuitive menu systems for ease of set up and can be programmed to display readings, alarms, limits and other metrology functions. With discrete I/O and serial interfaces these readouts provide a neat interface to other systems like PLC’s.




    Key Features

    • Intuitive menu
    • 2 LVDT inputs
    • Mathematical functions
    • Auto Colour Change for in/out limit range
    • RS232 Connectivity
    • Discrete I/O


    View Brochures and Drawings

    Please click the links to view and download the following information:

    Orbit Digital Gauge Catalogue.
